EarthQuaker Ledges® Tri-Dimensional Reverberation Machine *Free Shipping in the USA*

  • $199.00
    Unit price per

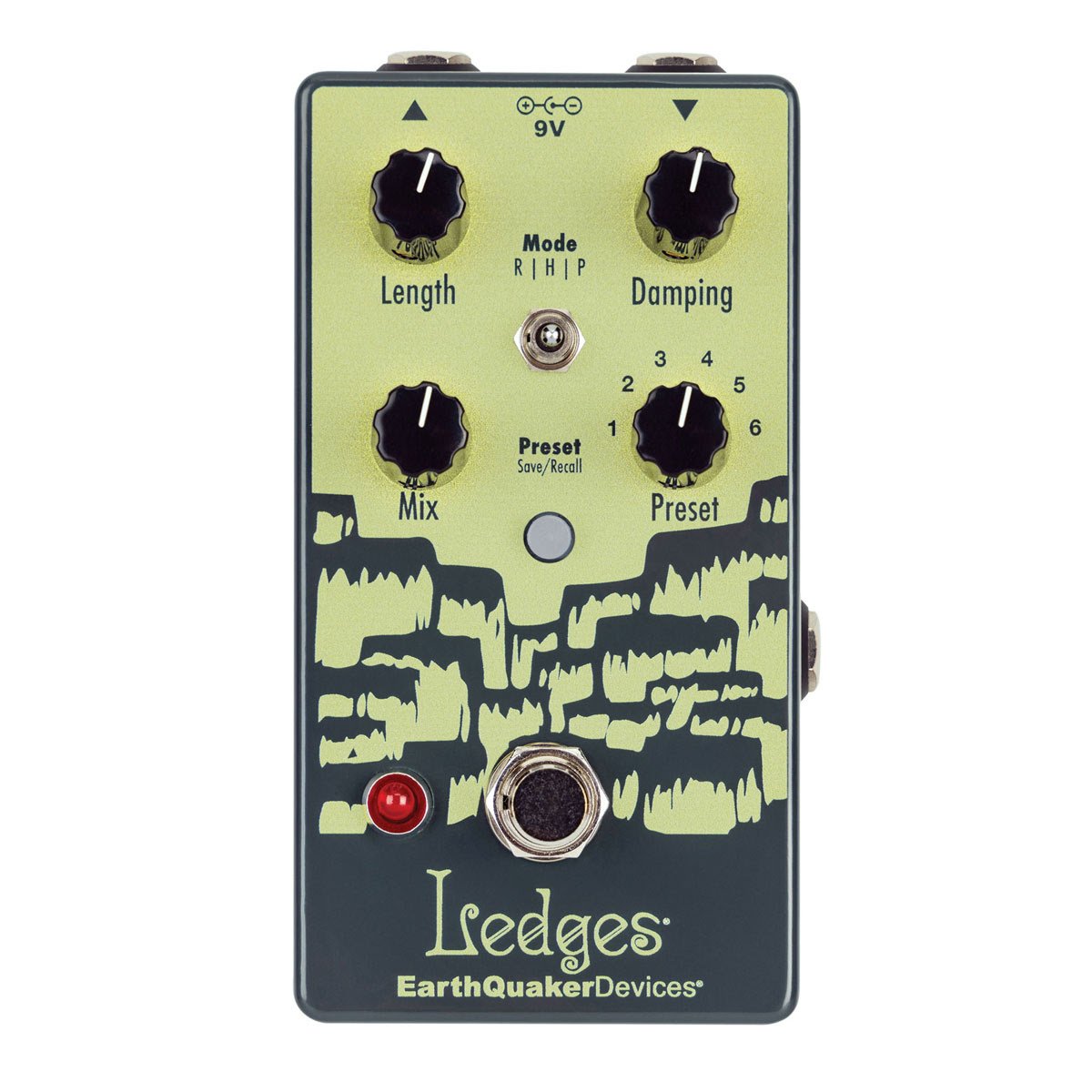

Ledges, our most customizable reverb ever, is a three-mode reverb with the ability to save and recall six presets and user-assignable expression control with loads of customizable options. From classic, standard reverb tones to undiscovered sonic reaches, it’s everything you’ve ever wanted and needed out of a reverb.

The three switchable modes each deliver a unique blend of reverb, but are connected through a spectrum where the Room (R) reverb’s longest setting is the Hall (H) reverb’s shortest setting, the Hall reverb’s longest setting is the Plate’s (P) shortest setting, and the Plate’s longest setting just keeps on going. The Room setting at its shortest achieves a small, boxy room sound that gradually gets bigger as you turn it up. As you increase the Hall setting, it morphs into a Cathedral™-style reverb that becomes really big, boomy and echoey with distant reflections. Turn up the Plate setting to get bouncy reflections that recycle and reverberate forever.

Ledges can go from an ‘80s slapback reverb mix to a bigger room spring reverb with a twist of the dials. The Mix knob lets you control how much your signal is affected, while the Length knob controls the size of the reverb. The Damping knob subtly mutes the high-frequency reflections of the reverb, which you’ll hear clearly by adjusting your gain.

In addition to all of the features, there are six Presets available. Simply select a number with the switchable knob and then engage the Save on the center button and dial in your perfect sound. A quick Recall on the same button and you have all of your personalized reverb sounds with a single tap. You can assign an expression pedal to each of the three controls and then save it all in the presets.

Ledges is not a limited edition, and will be a regular part of our line. There is no limit on the quantity you can pre-order.
Tech Specs

Three switchable modes each deliver a unique blend of classic reverb tone:
Room Mode: from small to large room reverb
Hall Mode: from hall to cathedral-style reverb
Plate Mode: from large plate to mega plate reverb with nearly infinite reflections
Easily save and recall six user-assignable presets
User-assignable expression control over each of the three parameters
Two global operating modes which are indicated by the color of the Save/Recall switch: Green = Live Mode / Red = Preset Mode
Buffered bypass switching with tails features Flexi-Switch® Technolog
Lifetime warranty
Current Draw: 80 mA
Input Impedance: 1 MΩ
Output Impedance: 100 Ω
USA MAP/List Price: $199.00 USD
GTIN-12 (U.P.C.): 810019913617
SKU: EQDLEDGV1USA
Boxed Dimensions: 5.25 x 3.25 x 3.25″ (133.35 x 82.55 x 82.55 mm)
Out of Box Dimensions: 5 x 2.625 x 2.125″ (127 x 67 x 54 mm)
Boxed Weight: 16 oz. (453.6 g)
Out of Box Weight: 9.85 oz. (279.3 g)
